L SERIES
Compact Quadruped Robot
PRODUCT INTRODUCTION

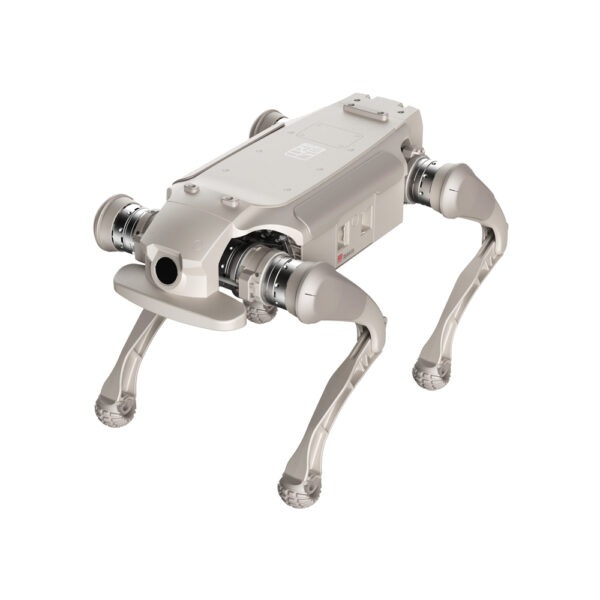

Genisom L1 is a compact quadruped robot built for rugged terrain, payload carrying, and robotics development. It supports AI-based locomotion, up to 8 kg payload, 40° slopes, IP54 protection, vision tracking, and open hardware/software interfaces for customization.
APPLICATION SCENARIOS
Industrial Inspection
Emergency Response
Security & Patrol
Performance & Entertainment

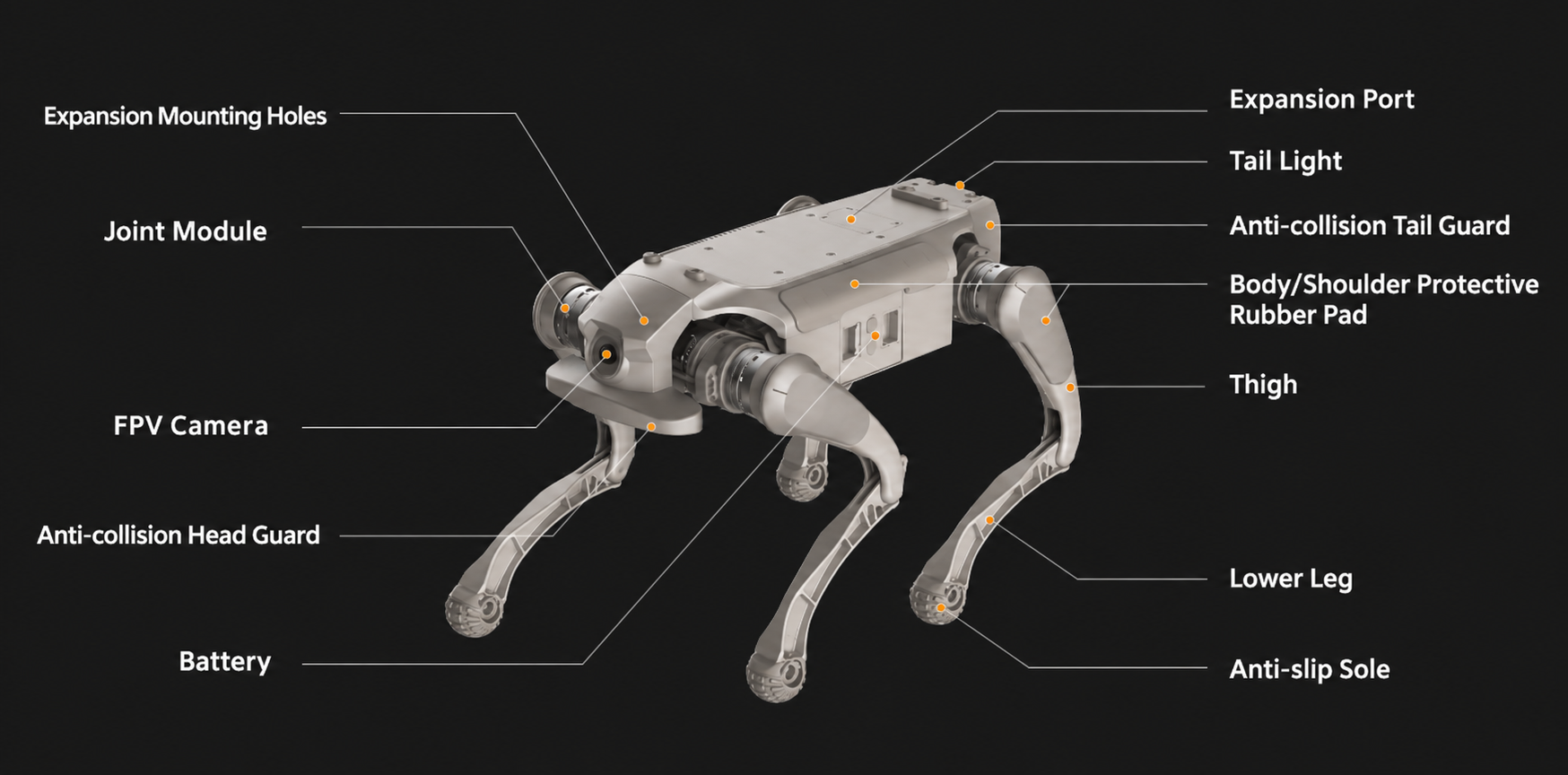

KEY FUNCTIONS
- All-Terrain Mobility
- 8 kg Payload
- Autonomous Perception & Target Tracking
- Expandable Hardware
- Secondary Development
- Multi-Robot Coordination
- Drone–Robot Collaboration
ROBOT ADVANTAGES
Peak Joint Torque 48Nm
12 high-power-density joints deliver strong, responsive motion for demanding maneuvers.
16cm Continuous Stair Climbing
Continuously climbs steps up to 16 cm for reliable movement across stairs and uneven terrain.
8kg Continuous Walking Load
Carries up to 8 kg while walking, supporting sensors, computing modules and other payloads.
40-Degree Maximum Climbing Angle
Handles slopes up to 40° for confident mobility across steep and challenging terrain.
Terrain Adaptability
AI reinforcement-learning motion control adapts to obstacles, soft ground and uneven surfaces.
65cm Maximum Climbing Height
Built to resist dust and water ingress for dependable operation across indoor and outdoor environments.
DEMONSTRATION VIDEO

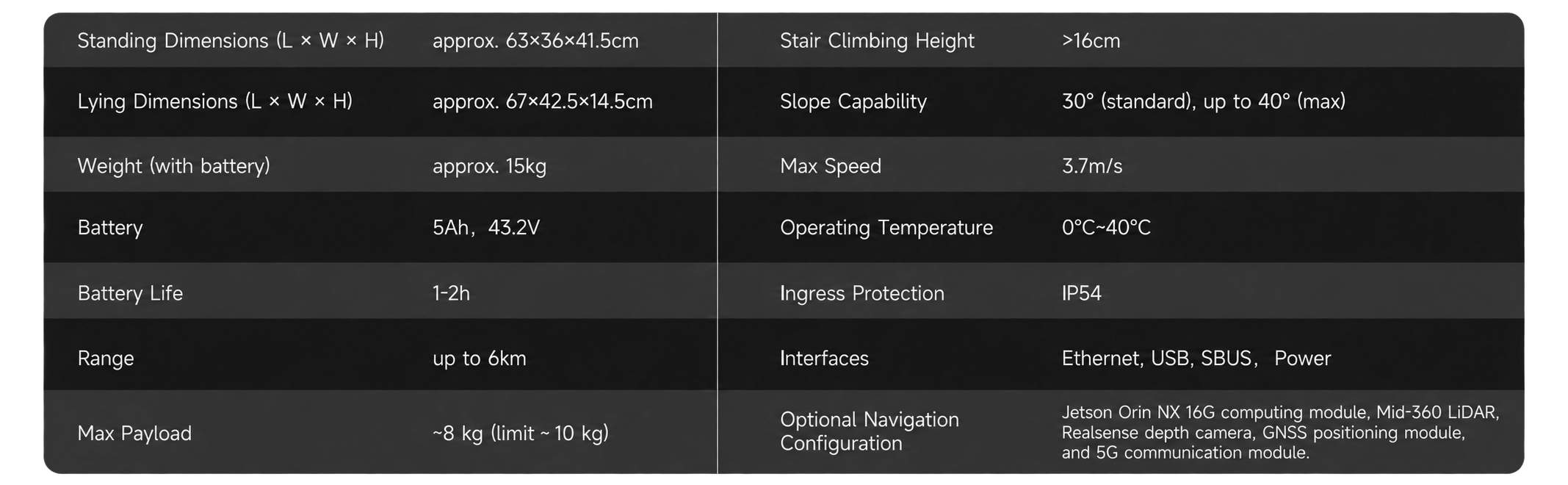

PRODUCT SPECIFICATIONS
