L2 SERIES
Compact Quadruped Robot
PRODUCT INTRODUCTION

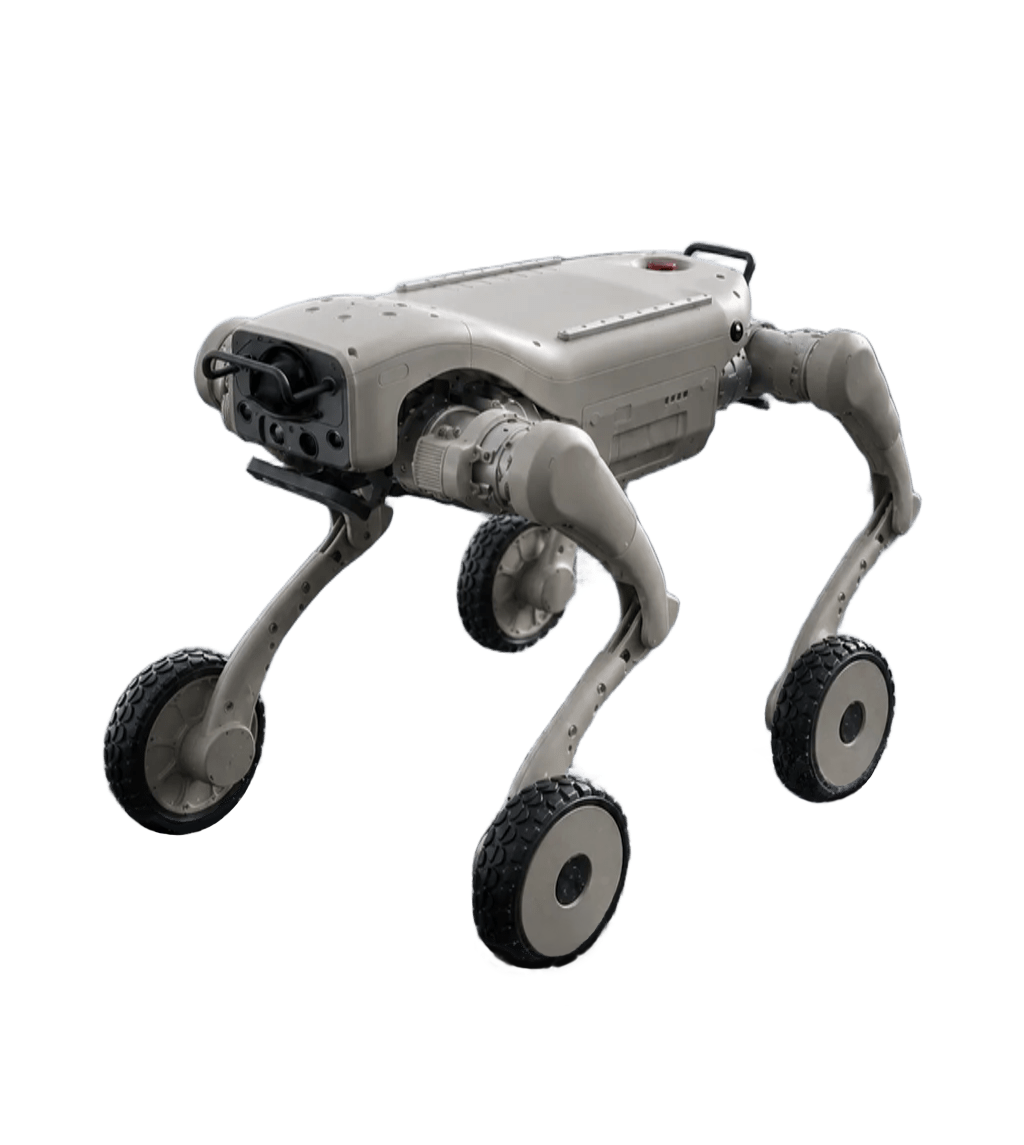

Genisom L2 is a compact quadruped robot designed to operate in challenging environments. It can carry a continuous payload of 16 kg, overcome obstacles up to 70 cm high, and climb slopes of up to 40°. With intelligent navigation, obstacle avoidance, and IP66 protection, it is well-suited for applications such as industrial inspection, security patrol, and emergency response.
APPLICATION SCENARIOS
Industrial Inspection
Emergency Response
Security & Patrol
Research & Education

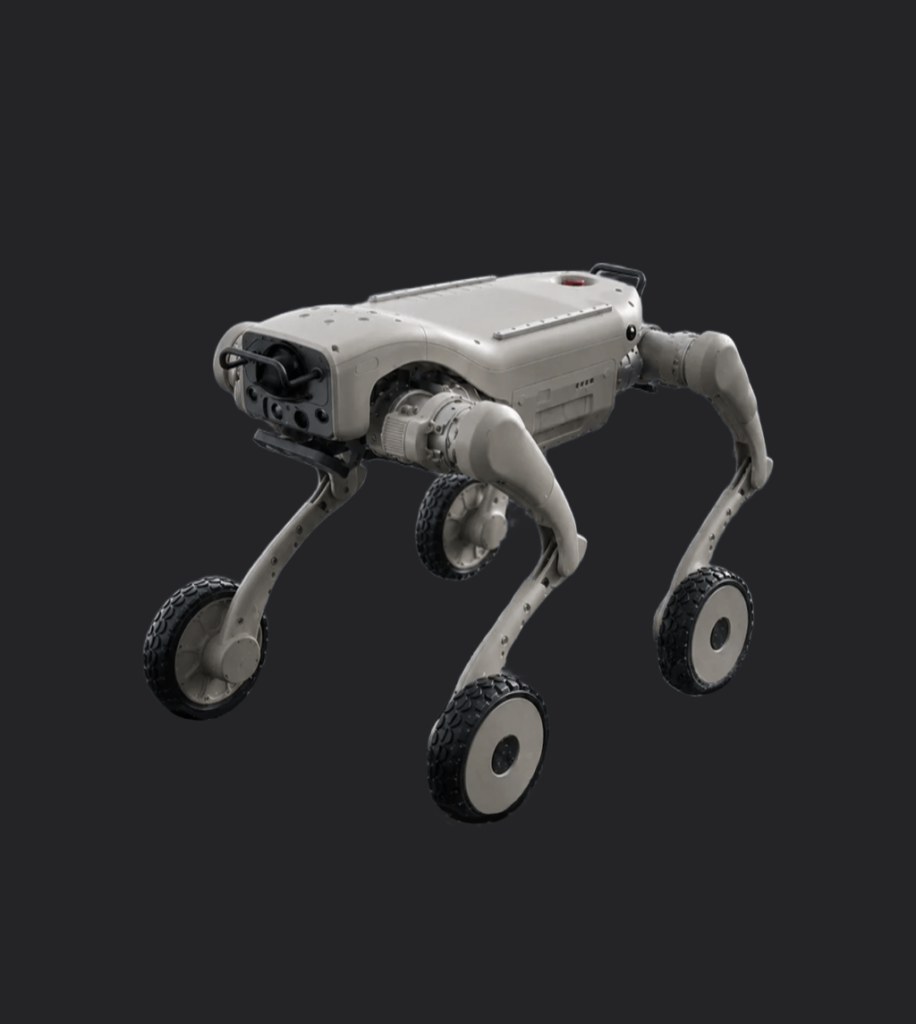

KEY FUNCTIONS
- Autonomous Navigation
- Obstacle Detection and Avoidance
- Autonomous Following
- All-Terrain Mobility
- Payload Transportation
- All-Weather Operation
ROBOT ADVANTAGES
16 kg Payload & 150 kg Static Load
Delivers strong load-carrying performance in a compact design.
70 cm Obstacle & 40-Degree Climbing Angle
Navigates steep slopes, uneven terrain, and challenging obstacles.
756 Wh Battery & 5.5 h Runtime
Provides up to 20 km of operating range under specified conditions.
86 TOPS AI & cm-Level Positioning
Enables intelligent navigation, route planning, and obstacle avoidance.
720-Degree Omnidirectional Sensor
Provides comprehensive environmental awareness using cameras and LiDAR.
IP66 & −20°C to 55°C Operation
Supports reliable performance in harsh weather and extreme temperatures.
DEMONSTRATION VIDEO

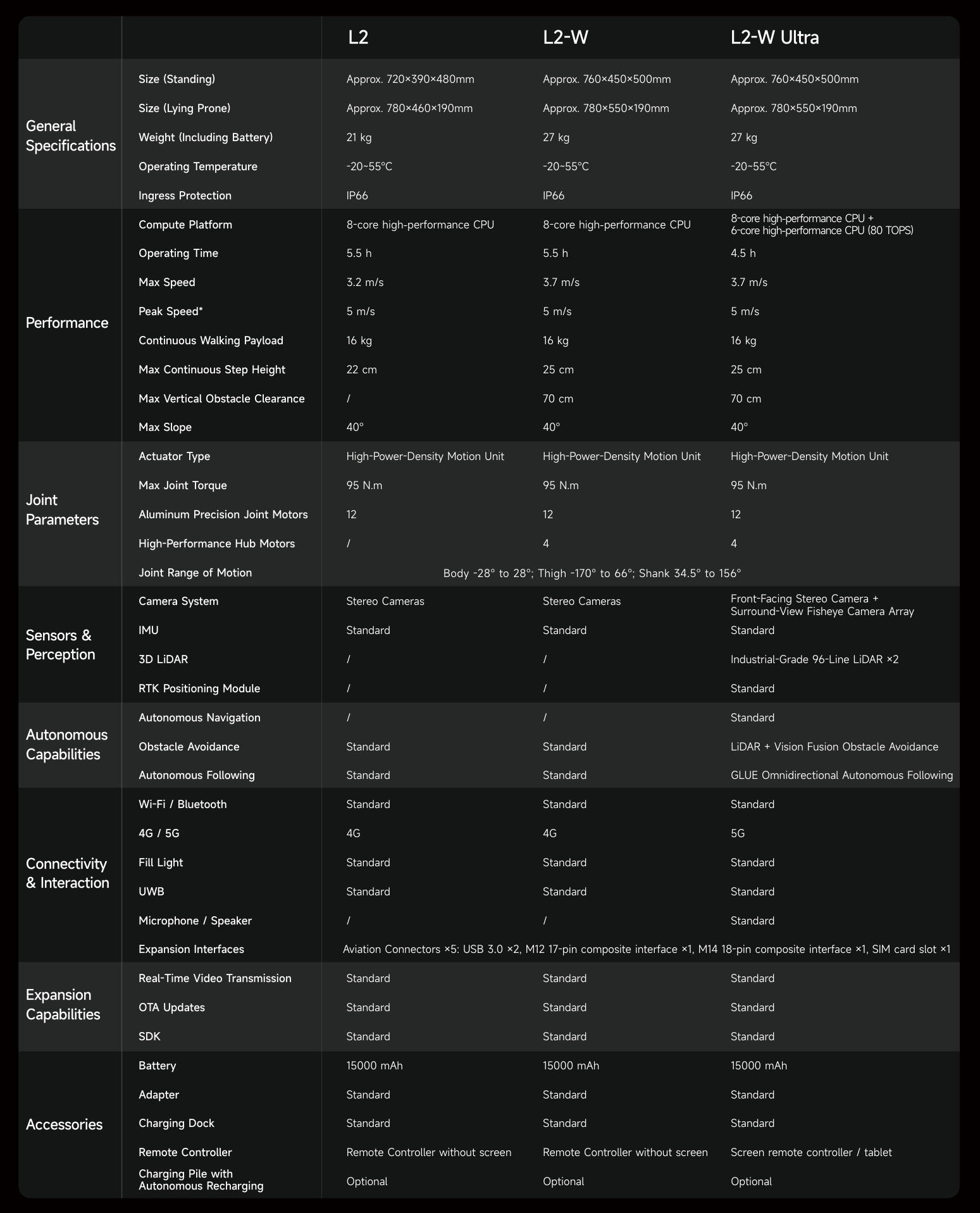

PRODUCT SPECIFICATIONS
